Silicon Concepts is the leading manufacturer of stress measurement tools for semiconductor, MEMS, optoelectronic, and flat panel applications. Stress and wafer bow maps can be acquired over the entire wafer surface, providing process engineers means to characterize and develop new processes using different thin film materials.
The SIC 128 Series systems are room temperature, full-wafer 2D/3D stress mapping systems. 128 systems use SIC's patented non-contact Opti-Lever dual-laser auto-switching technology. Ability to scan 1000 points per inch in seconds for high resolution, high precision stress mapping on blanked and patterned wafers.

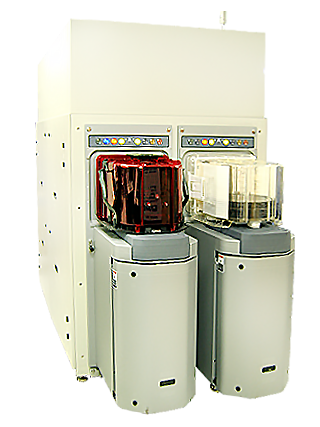

Dedicated Film Stress mapping system with high resolution for high throughput process control. Fully automated cassette to cassette, SECS/GEM compliant 300mm Film Stress and Bow Measurement tool. Dual or single FOUP configurations available. Integrated wafer substrate thickness measurement available.
